10

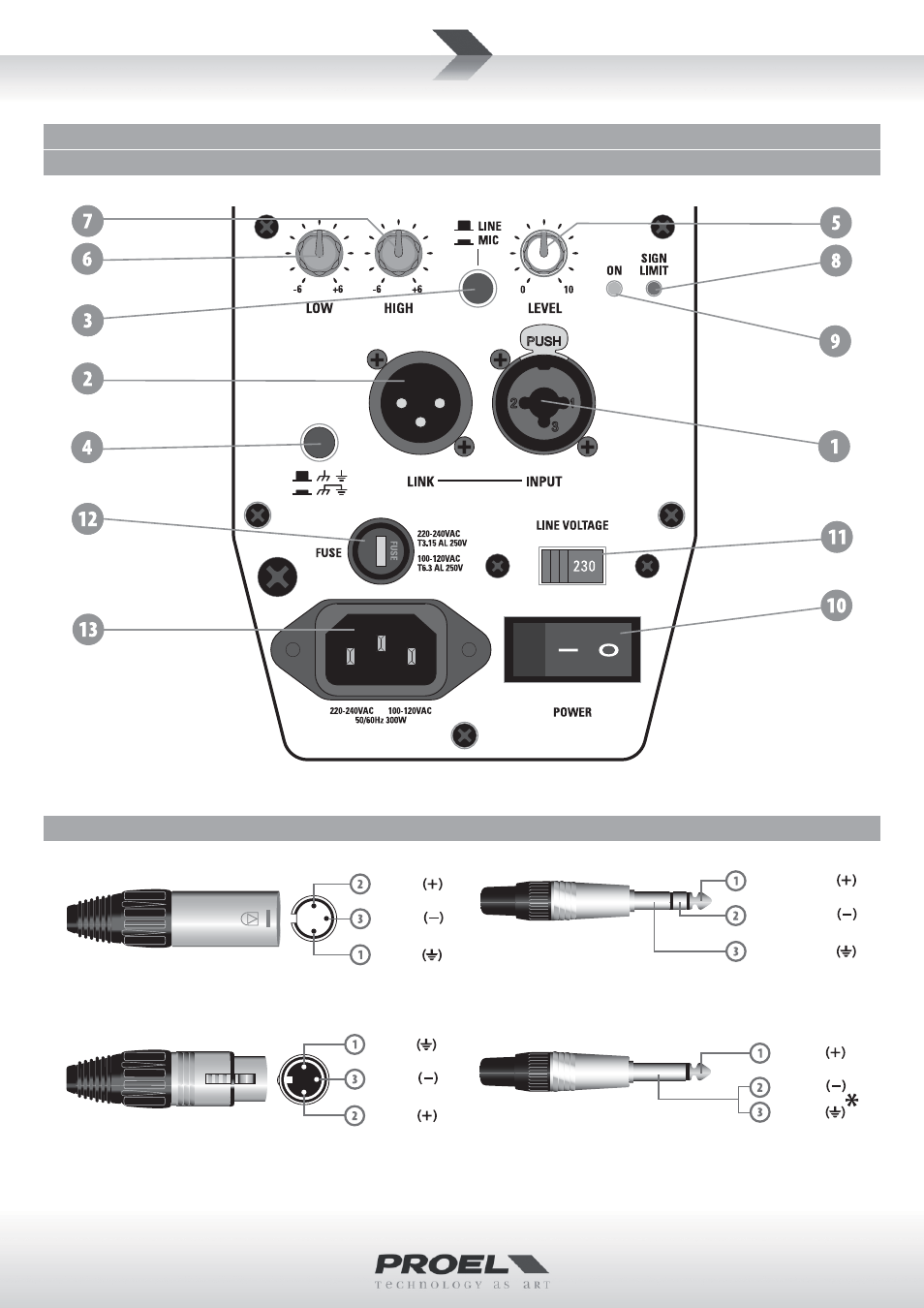

CONNECTIONS (FIG.4)
CONNESSIONI (FIG.4)
INPUT (ingresso)
Jack (bilanciato)
INPUT
Jack (balanced)
sleeve - ground
tip - hot
ring - cold
INPUT (ingresso)
XLR bilanciato maschio
INPUT
Balanced male XLR
ground
hot
cold
INPUT (ingresso)
Jack (sbilanciato)
INPUT
Jack (unbalanced)
ground
tip - hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
LINK (uscita)
XLR bilanciato femmina
LINK (output)
Balanced female XLR
ground
hot
cold
LT10A / LT12A / LT15A / LT215A
CONTROL PANEL (FIG.3)
LT10A / LT12A / LT15A / LT215A
PANNELLO DI CONTROLLO (FIG.3)
