4 Channel Selection (in receipt) (175/175,5/176MHz)
To select in accordance with the transmitter signal frequency.
5 Earphone connector
6 Connector for eventual amplifier piloting
7 Label with technical data and serial number
8 Fixing clip
9 Battery compartment
4. TXTOUR- TRANSMITTER FUNCTIONS AND CONTROL

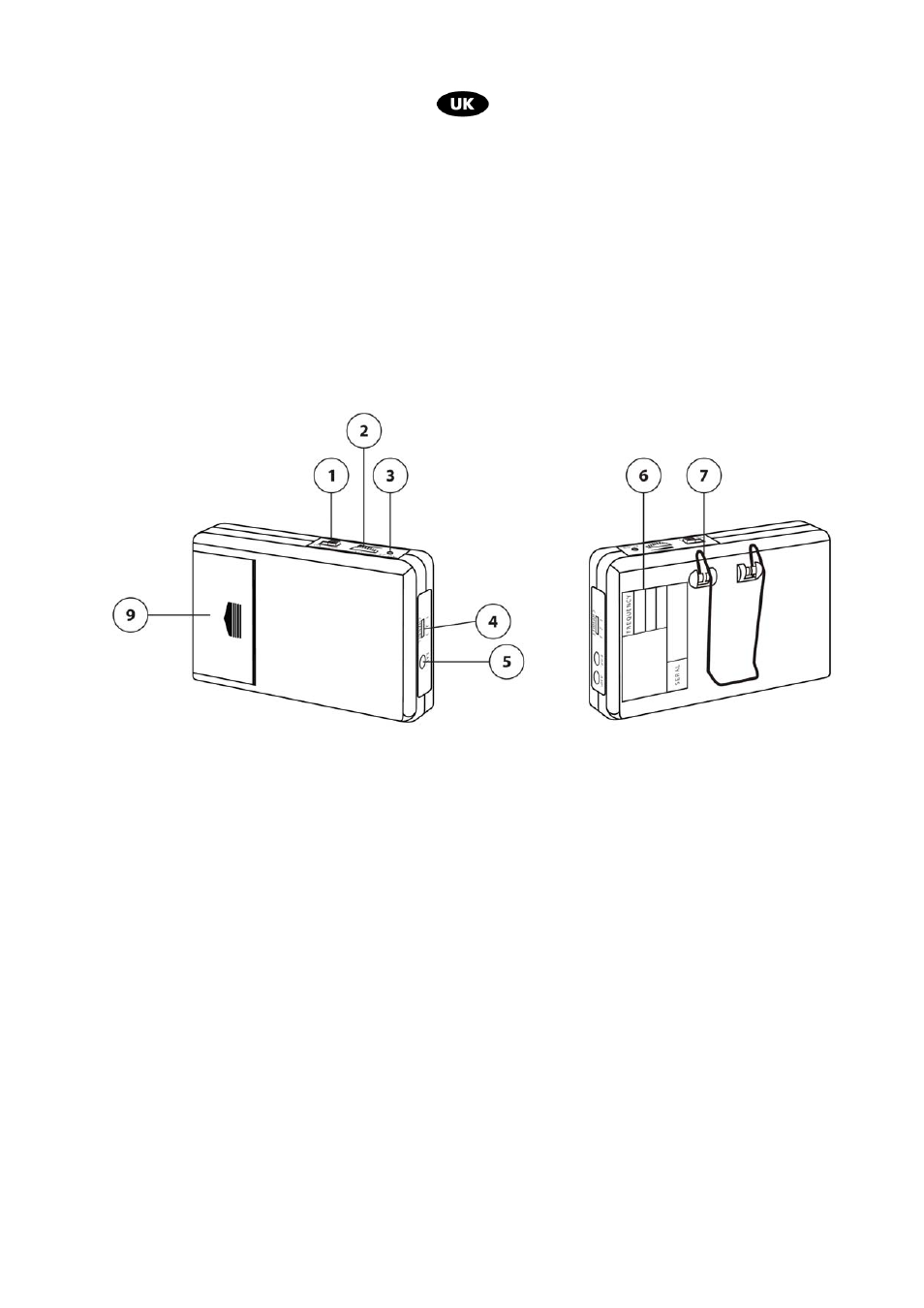

fig.2
1 Power on switch
2 Microphone gain control
3 Led for battery discharge indication
Led lights when the battery is scarcely efficient.
4 Microphone sensibility selector
Standard sensibility - position 1
5 Microphone connector
6 Label with technical data and serial number
7 Fixing clip
8 Battery compartment
