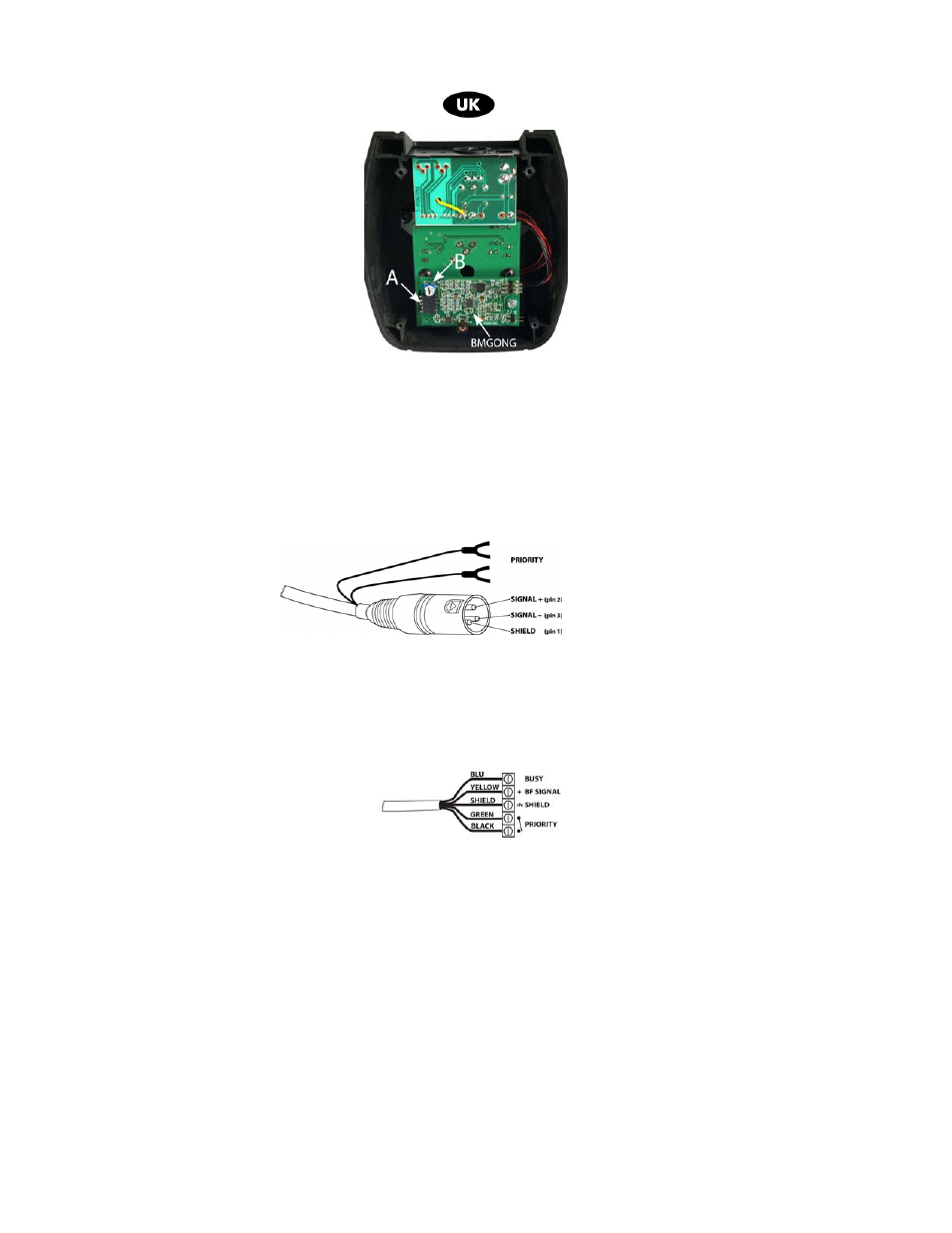

fig.1
Connections and operating mode
• BM100
With reference to figure 2 it is possible to connect the stand to an amplifier microphone
balanced input with VOX priority function (duking). In this case it is not necessary to use
the two small cables. If in the amplifier unit there is a priority contact with voice and
music function screw terminal , the cables connection is necessary. Pressing the front
pushbutton, the indicator led is ON status and contemporaneously the priority function
(contact closed through 2 terminals) and the pre-advice signal DIN DON optional are
activated and the stand allows next microphone message sending
Nota: It is possible to connect in parallel the stands
fig.2
• BM100A
With reference to figure 3 connect the 3 stand terminal cables to the power unit screw
terminal.
Pressing front pushbutton the priority function is activated (priority contact closing) and
the pre-advise chime tone (optional) allows next microphone message sending.
fig.3
