DESCRIPTION DESCRIPTION
Reduced dimensions, easy installation and good performance, these are the characteristics of
MICRO and CELLULAR. Supplied with a very small mount with spheric joint to allow an inclination
of a 90° without keys. CELLULAR 33 S has a simple tuning system protected by a rubber cap and its
flexible whip can be easily removed for car-wash. MICRO 30 S is the opened coil stainless steel
version completely black chromed and it can be tuned by acting on the steel rod. Both models are
available in rigid version (not adjustable) or can be supplied with a mini magnet mount for a quick
installation on the vehicle.
SPECIFICATIONS SPECIFICATIONS

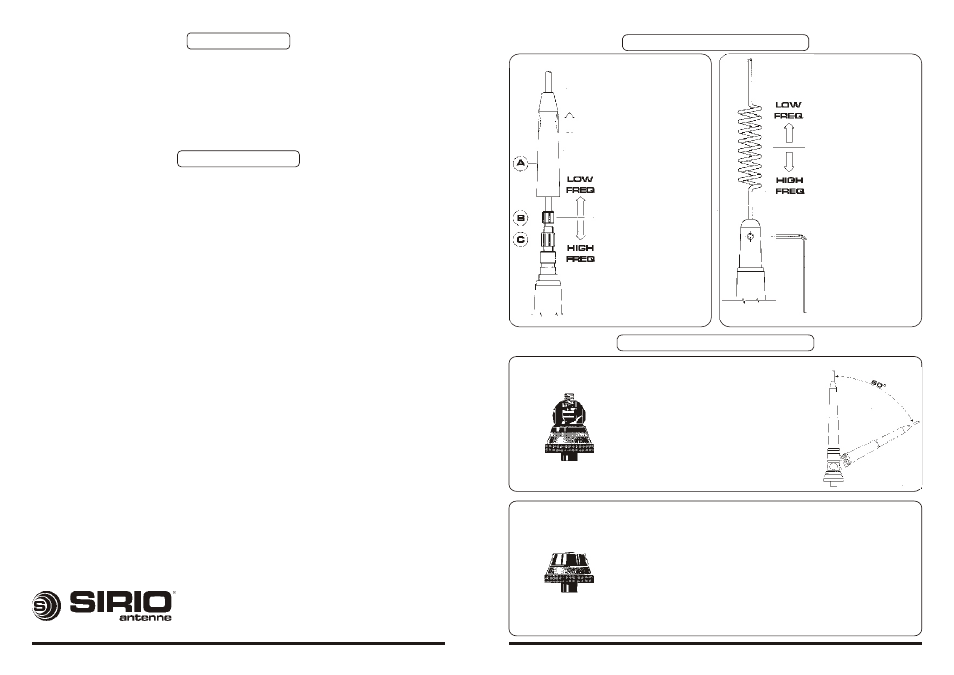

TUNING INSTRUCTIONS TUNING INSTRUCTIONS
ID287
Electrical Data
Type : Base Loaded
Frequency Range : 27 ... 27.5 MHz
Impedance : 50 W Unbalanced
Radiation : Omnidirectional
Polarization : Vertical
SWR @ res. freq. : £ 1.4
Max Power :10 Watts (CW) continuous
30 Watts (CW) short time
Bandwidth @ SWR £ 2 : 600 KHz Micro 30 S
650 KHz Cellular 33 S
Cable length / Type : 4 m / RG 58 A/U "CE-S" & "CE" mount
4.5 m / RG 58 A/U MAG S mount tiltable version
3 m / RG 58 A/U MAG mount not tiltable version
Mechanical Data
Materials : Thermoplastic, Copper, 17.7 PH Stainless Steel
Height (approx.) : 325 mm Micro 30 / 30 S , Cellular 33 /33 S
350 mm Micro 30 MAG / 30 S MAG
Cellular 33 MAG / 33 S MAG
Weight (approx.) : 80 gr Micro 30 / 30 S , Cellular 33 /33 S
440 gr Micro 30 MAG / 30 S MAG
Cellular 33 MAG / 33 S MAG
Mounting: : hole Æ 10 mm Micro 30 / 30 S , Cellular 33 / 33 S
magnetic Micro 30 MAG / 30 S MAG
Cellular 33 MAG / 33 S MAG
HI-QUALITY ANTENNAS MADE IN ITALY
CELLULAR 33
1 Press and lift the item
A in the point marked
by the outline
2 Release the metal
ring C.
3 Act on the pin B for
tuning your antenna.
4 Lock the metal ring C.
5 Lower the item A to
the initial position.
REMARK: It may be
necessary to cut the
antenna rod to get the
correct tuning. In this
case it’s recommended
to slightly cut the
radiator not more then
5mm /cut
MICRO 30
Loosen the locking
screw of the whip and
by means of the alan
key supplied act on it in
order to fine tune your
antenna.
REMARK: It may be
necessary to cut the
antenna rod to get the
correct tuning. In this
case it’s recommended
to slightly cut the
radiator not more then
5mm /cut
ALTERNATIVE MOUNT TYPE ALTERNATIVE MOUNT TYPE
"CE-S" mount
Spheric joint for inclination.
4 m cable RG 58 C/U
Mounting hole Æ 10 mm
Code 2206428.38 Cellular 33 S
Code 2206506.38 Micro 30 S
"CE" mount
Rigid version not tiltable.
4 m cable RG 58 C/U
Mounting hole Æ 10 mm
Code 2206428.37 Cellular 33
Code 2206506.37 Micro 30
